Diesel Injector Master Service Kit – Injector Extractor Set with Slide Hammers

This Diesel Injector Master Service Kit is a comprehensive extractor set designed for the removal of most diesel injectors, including stubborn or seized units. Supplied with a wide range of adaptors and slide hammers, it provides professional technicians with the flexibility and strength required for safe and effective injector extraction.

The kit includes three heavy-duty slide hammers, multiple pulling claws, slotted sockets, threaded adaptors, and extractor sleeves, making it suitable for a broad range of diesel engines. Ideal for workshop and garage use, it helps reduce the risk of cylinder head damage while improving efficiency during injector servicing.

Key Features

• Complete Diesel Injector Extraction Kit
  Designed for removal of most diesel injectors.

• Multiple Slide Hammers Included
  Three sizes for controlled and progressive pulling force.

• Wide Range of Adaptors
  Supports internal and external threaded injector extraction.

• Heavy-Duty Construction
  Built for professional workshop use.

• Reduces Risk of Damage
  Enables controlled removal of seized injectors.

• Ideal for Professional Mechanics
  Suitable for garages, workshops, and engine specialists.

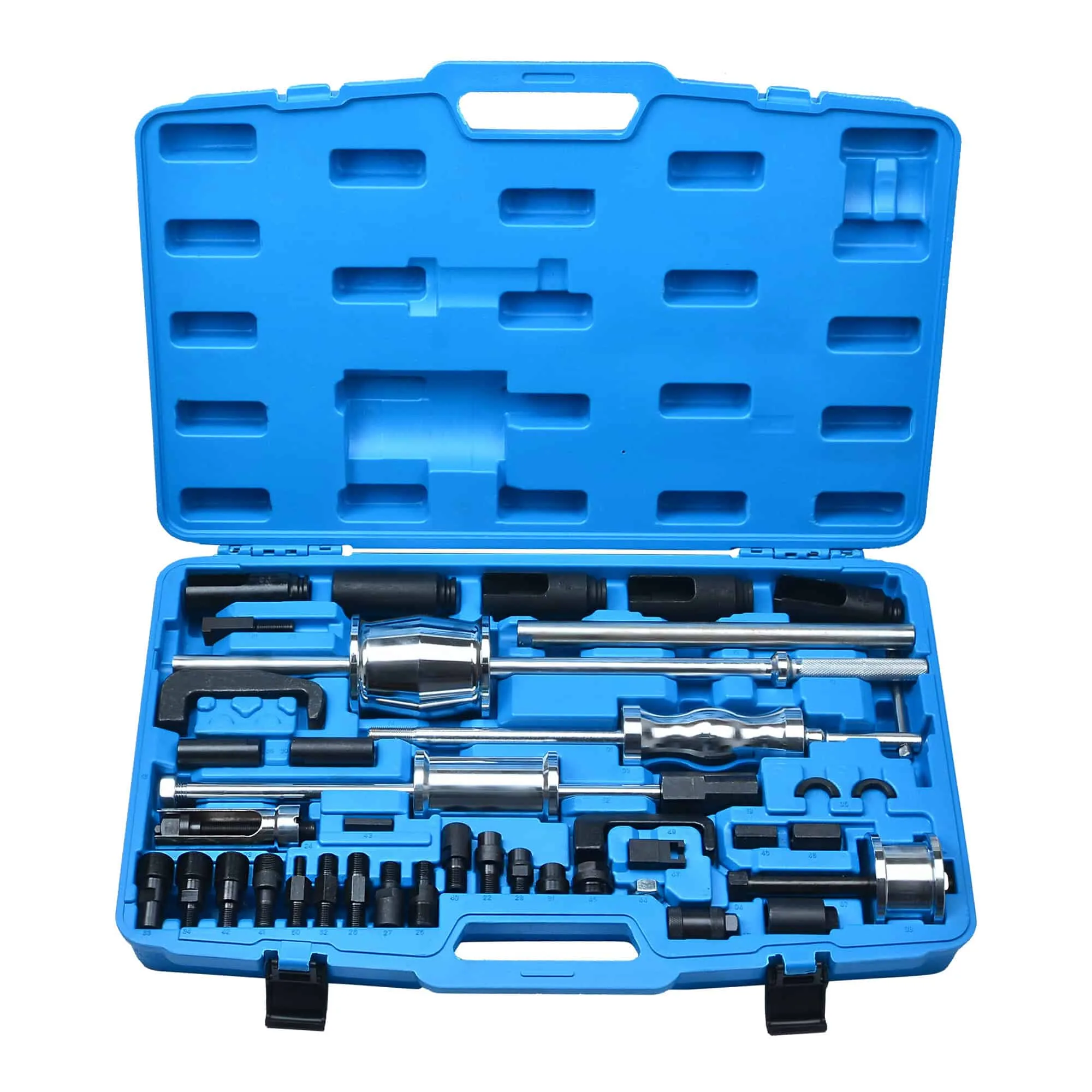

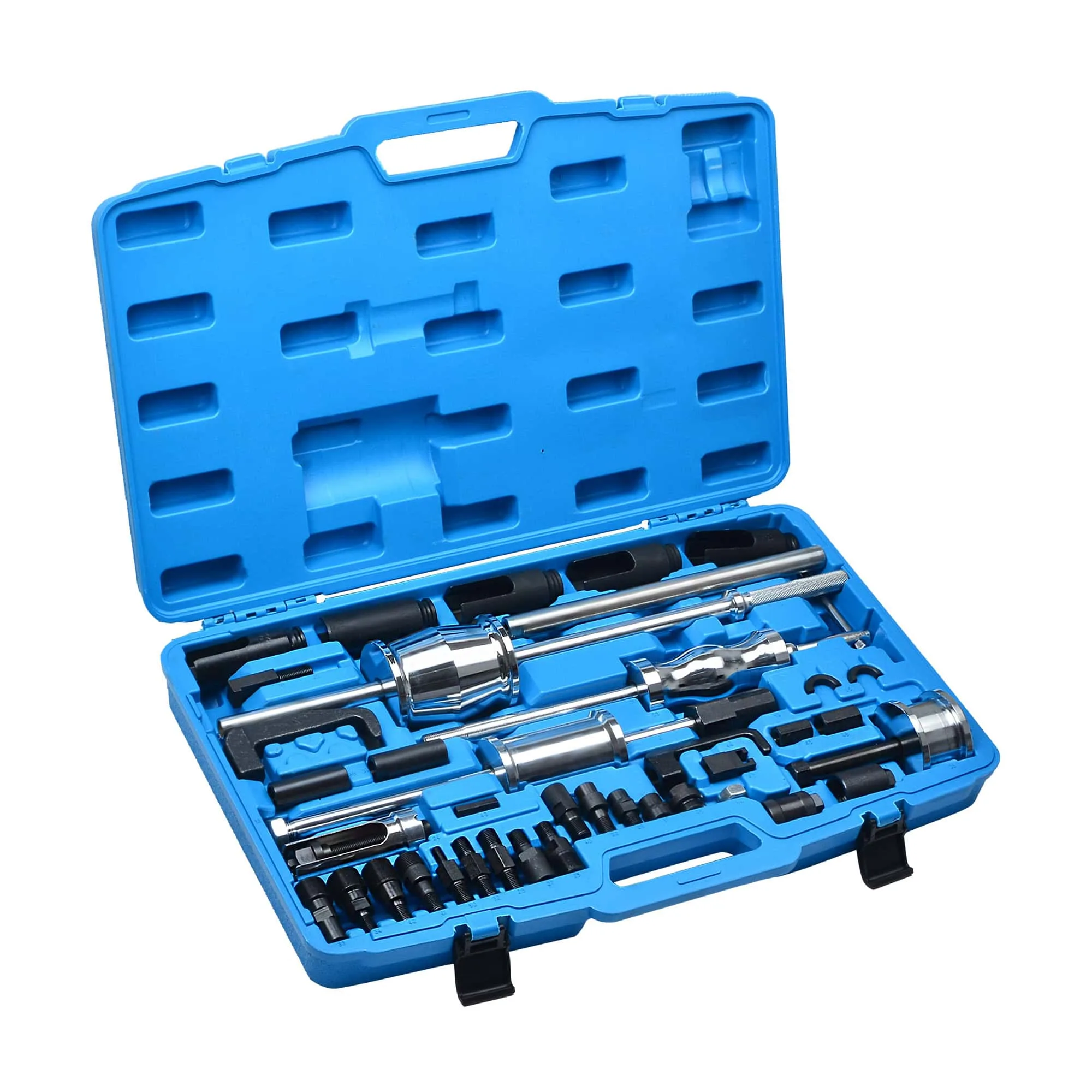

📦 Kit Contents

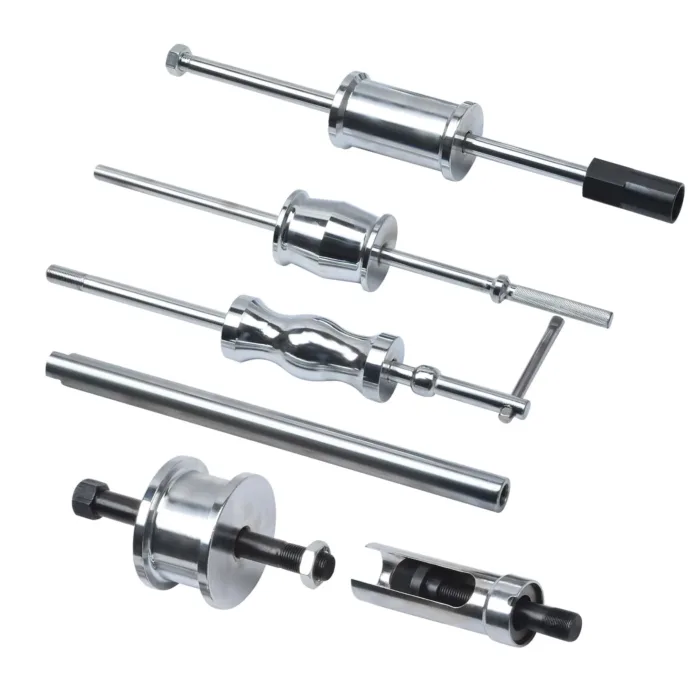

Slide Hammers

• 1.6 kg × 160 mm long

• 2.7 kg × 460 mm long

• 5.1 kg × 600 mm long

Pulling Claws

• Fork opening 13.7 × 18 mm – 105 mm long

• Fork opening 12.7 × 19 mm – 130 mm long

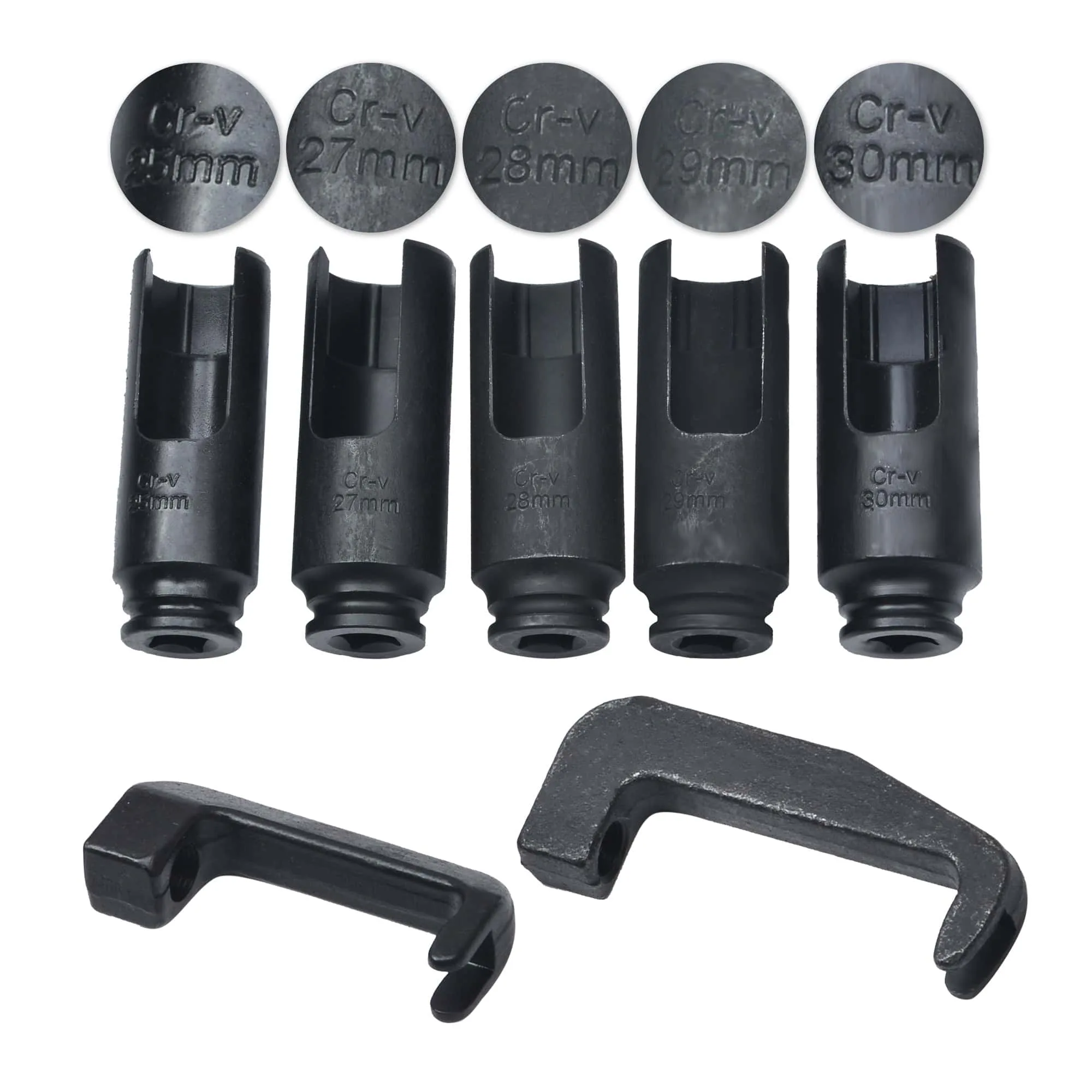

Slotted 6-Point 1/2″ Drive Sockets (100 mm long)

• 25 mm

• 27 mm

• 28 mm

• 29 mm

• 30 mm

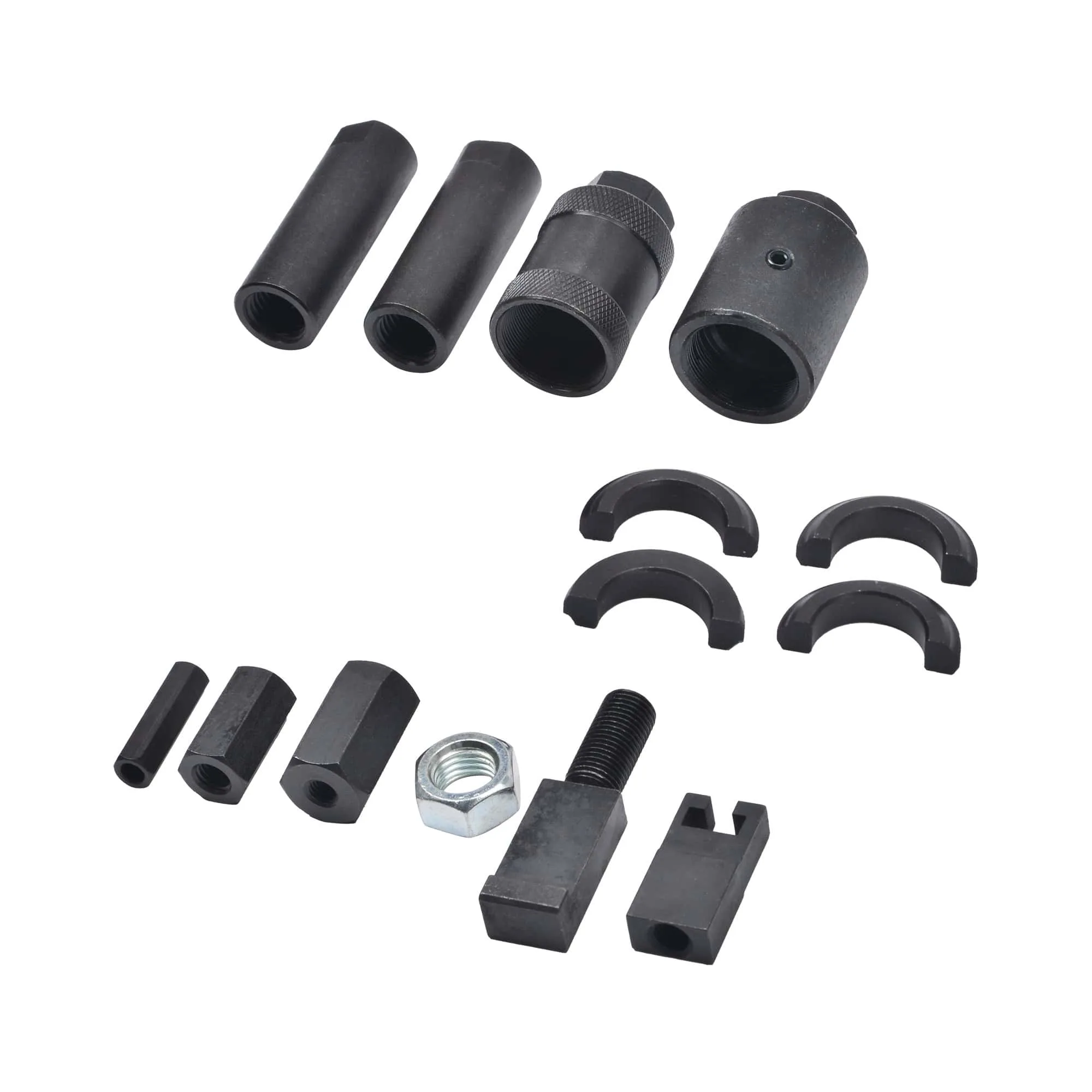

Injector Extractor Sleeve

• Outer diameter: 35 mm

• Internal diameter: 29 mm

• Spindle thread: M17 × 1.0

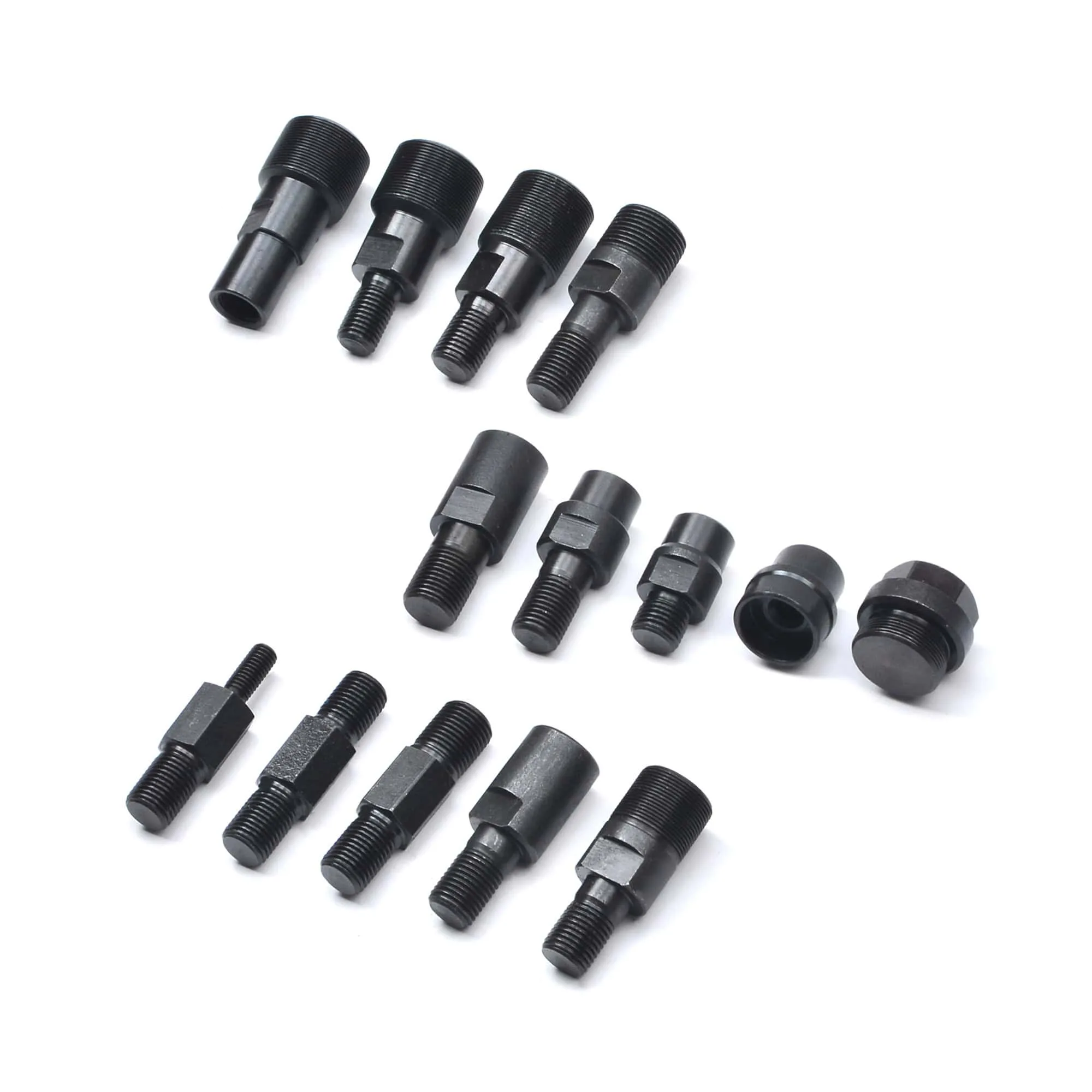

Pulling Adaptors

• External thread: M27 × 1.0 (3 pcs)

• External thread: M25 × 1.0

• Internal thread: M27 × 1.0 (3 pcs)

Additional Components

• Sliding hammer adaptor for inner, outer, and claw extractors
